This is a two-part series post.

Part 1: Key concepts about how to build multi-platform images.

Part 2: A practical example of how to build a container image targeting an ARM64 processor using Azure Pipelines and how to deploy it on AWS ECS Fargate.
It will also include a quick benchmark to compare the performance of the application running on an ARM64 Fargate container against the same app using an AMD64 Fargate container.

In the first part of this blog post, we explored the creation of a multi-platform image, the workings of .NET multi-platform images, and the options at our disposal for building a multi-platform image, such as emulation, cross-compilation, or utilizing a host with the target architecture.

Now, it’s time to build an end-to-end process. We’ll aim to build a container image targeting ARM64 using a CI runner, deploy the application onto an ARM64 machine host, and verify its proper functioning.

Currently, I don’t possess an ARM64 machine, so to construct this end-to-end process, I’ve opted to utilize the following cloud services:

AWS ECR for storing the container image.
AWS ECS Fargate for running the API.
Azure Pipelines for building and publishing the image into the AWS ECR.
Artillery for testing the API.

Why choose AWS over Azure? There’s no specific reason. In my recent posts, I’ve been using Azure, so switching to AWS might provide a refreshing change of pace.

Application

You can find the app source code in here.

The application we’re going to use is a BookStore API built using .NET 8.

This API is capable of executing the following operations:

Retrieve, add, modify, and remove book categories.
Retrieve, add, modify, and remove books.
Retrieve, add, modify, and remove inventory.
Retrieve, add, and modify orders.

This application requires a SQL Server database. However, to simplify matters, we’ll employ Entity Framework (EF) with an in-memory database.

services.AddDbContext<BookStoreDbContext>(options =>
{
    options.UseInMemoryDatabase("BookStoreDb");
});

Constructing the Dockerfile

Instead of building a single multi-platform Dockerfile, let’s make the effort to construct two: one employing emulation and another utilizing Cross-Compilation.

Using emulation

To create a Dockerfile that uses emulation, we don’t need to do any extra step; just a simple run-of-the-mill Dockerfile will suffice.

Emulation is the easiest option of the three available, because it requires no changes at all to your Dockerfile. The BuildKit automatically detects the secondary architectures that are available and when BuildKit needs to run a binary for a different architecture, it automatically loads it.

The following code snippet shows the Dockerfile with the following features:

It’s a multi-stage Dockerfile: it uses Ubuntu 22.04 as a base image for the build stage and an Ubuntu Chiseled image for the runtime stage.
The application is published as self-contained, resulting in an application bundle that encompasses the .NET runtime, libraries, as well as the application itself and its dependencies.

FROM mcr.microsoft.com/dotnet/sdk:8.0-jammy AS build-env
WORKDIR /app

# Copy everything
COPY . ./

# Restore packages
RUN dotnet restore -s "https://api.nuget.org/v3/index.json"

# Build project
RUN dotnet build "./src/BookStore.WebApi/BookStore.WebApi.csproj" \
    -c Release \
	--self-contained true

# Publish app
RUN dotnet publish "./src/BookStore.WebApi/BookStore.WebApi.csproj" \
	-c Release \
	-o /app/publish \
	--no-restore \
	--no-build \
	--self-contained true

# Build runtime image
FROM mcr.microsoft.com/dotnet/runtime-deps:8.0.0-jammy-chiseled-extra

# Copy artifact
WORKDIR /app
COPY --from=build-env /app/publish .

# Starts on port 8080
ENV ASPNETCORE_URLS=http://+:8080

# Set Entrypoint
ENTRYPOINT ["./BookStore.WebApi"]

Now, let’s try to build the container image on my AMD64 machine.
Remember that we’re running the dotnet build command on an AMD64 host machine while targeting an ARM64 processor. This means that it will employ the QEMU emulator for building the resulting container image.

docker build --platform=linux/arm64 -t bookstore-api:arm64-emulation -f src/BookStore.WebApi/Dockerfile .
[+] Building 132.1s (15/15) FINISHED

It takes quite some time (and consumes a significant amount of CPU and memory resources), but we eventually end up with a functional ARM64 container image.

Using Cross-Compilation

The idea behind Cross-Compilation is to utilize a multi-stage build Dockerfile. In the build stage, you compile your code for the target architecture, and in the run stage, you configure the runtime to be exported to the final image.

Using the Dockerfile from the previous section as a starting point, there are several modifications needed to make it compatible with Cross-Compilation.

Use the pre-defined build argument BUILDPLATFORM to pin the builder to use the host’s native architecture as the build platform. This is necesarry to prevent emulation.
In simpler terms, we need to add the --platform=$BUILDPLATFORM attribute into the FROM instruction of the build stage.
Add the ARG TARGETARCH instructions for the build stage, making the TARGETARCH build arguments available to the commands in this stage.
Modify the dotnet restore, dotnet build and dotnet publish commands so they generate the application binaries for the target architecture (in our case arm64).
To accomplish this, we’re going to use the --arch attribute along with the TARGETARCH argument.

FROM --platform=$BUILDPLATFORM mcr.microsoft.com/dotnet/sdk:8.0-jammy AS build-env
WORKDIR /app
ARG TARGETARCH

# Copy everything
COPY . ./

# Restore packages
RUN dotnet restore -s "https://api.nuget.org/v3/index.json" \
	-a $TARGETARCH

# Build project
RUN dotnet build "./src/BookStore.WebApi/BookStore.WebApi.csproj" \
    -c Release \
	-a $TARGETARCH \
	--self-contained true

# Publish app
RUN dotnet publish "./src/BookStore.WebApi/BookStore.WebApi.csproj" \
	-c Release \
	-o /app/publish \
	--no-restore \
	--no-build \
	--self-contained true \
	-a $TARGETARCH

# Build runtime image
FROM mcr.microsoft.com/dotnet/runtime-deps:8.0.0-jammy-chiseled-extra

# Copy artifact
WORKDIR /app
COPY --from=build-env /app/publish .

# Starts on port 8080
ENV ASPNETCORE_URLS=http://+:8080

# Set Entrypoint
ENTRYPOINT ["./BookStore.WebApi"]

Now, let’s attempt to build the container image targeting an ARM64 processor.

$ docker build --platform=linux/arm64 -t bookstore-api:arm64-cc -f src/BookStore.WebApi/Dockerfile .
[+] Building 16.2s (15/15) FINISHED

Using Cross-Compilation, we’ve reduced the build time from 130 seconds to 17 seconds, and the CPU usage went from nearly 90% to no more than 20%.

Constructing the container image using Azure Pipelines (and pushing it into ECR)

In the previous section, we created a pair of Dockerfiles (one employing emulation to build the container image and another utilizing Cross-Compilation) and tested both on my local machine.
However, this isn’t a very realistic scenario. Now, instead of using my personal computer, let’s try building them using an Azure Pipelines Hosted Agent.

Using emulation

This process is quite straightforward. We’re using an Ubuntu hosted agent and the Dockerfile from the previous section. In the pipeline, we’re simply executing a docker build command using the --platform attribute.

trigger: none

pool:
  vmImage: ubuntu-latest

steps:
- task: Bash@3
  inputs:
    targetType: 'inline'
    script: |
      docker build --platform=linux/arm64 -t bookstore-api:arm64-emu -f src/BookStore.WebApi/Dockerfile .

And it throws an error.

#11 [build-env 4/6] RUN dotnet restore -s "https://api.nuget.org/v3/index.json"
#11 0.229 exec /bin/sh: exec format error
#11 ERROR: process "/bin/sh -c dotnet restore -s \"https://api.nuget.org/v3/index.json\"" did not complete successfully: exit code: 1
------
 > [build-env 4/6] RUN dotnet restore -s "https://api.nuget.org/v3/index.json":
0.229 exec /bin/sh: exec format error
------
Dockerfile:8
--------------------
   6 |
   7 |     # Restore packages
   8 | >>> RUN dotnet restore -s "https://api.nuget.org/v3/index.json"
   9 |
  10 |     # Build project
--------------------
ERROR: failed to solve: process "/bin/sh -c dotnet restore -s \"https://api.nuget.org/v3/index.json\"" did not complete successfully: exit code: 1

This is because the Azure Pipelines Linux hosting agent doesn’t come with QEMU preinstalled. QEMU is only preinstalled with Docker Desktop. If you’re using Docker Engine, you’ll need to install it separately.

To install it, we’ll use the qemu-user-static image. This image installs everything necessary to run QEMU.

Let’s attempt the process again, but this time, we’ll install QEMU first.

trigger: none

pool:
  vmImage: ubuntu-latest

steps:
- task: Bash@3
  inputs:
    targetType: 'inline'
    script: |
      docker run --rm --privileged multiarch/qemu-user-static --reset -p yes
      docker build --platform=linux/arm64 -t bookstore-api:arm64-emu -f src/BookStore.WebApi/Dockerfile .

And it throws another error. This time is a segmentation fault error.


#11 [build-env 4/6] RUN dotnet restore -s "https://api.nuget.org/v3/index.json"
#11 22.03   Determining projects to restore...
#11 26.85 Segmentation fault (core dumped)
#11 ERROR: process "/bin/sh -c dotnet restore -s \"https://api.nuget.org/v3/index.json\"" did not complete successfully: exit code: 139
------
 > [build-env 4/6] RUN dotnet restore -s "https://api.nuget.org/v3/index.json":
22.03   Determining projects to restore...
26.85 Segmentation fault (core dumped)
------
Dockerfile:8
--------------------
   6 |
   7 |     # Restore packages
   8 | >>> RUN dotnet restore -s "https://api.nuget.org/v3/index.json"
   9 |
  10 |     # Build project
--------------------
ERROR: failed to solve: process "/bin/sh -c dotnet restore -s \"https://api.nuget.org/v3/index.json\"" did not complete successfully: exit code: 139

As I mentioned in part 1 of this blog post, the combination of Docker Engine, QEMU, and .NET doesn’t work well together.

I’m going to abandon the idea of trying to build an image using emulation. It’s not worth dealing with the emulator inconsistencies when working with .NET.
Besides, using cross-compilation is the preferred method here. We were merely experimenting with emulation to determine if it was a viable option or not. And the answer to that question is that it’s not a viable option.

Using cross-compilation

This process is identical to the last section. We’re using an Ubuntu hosted agent and the Dockerfile from the previous section. In the pipeline, we’re executing a docker build command using the --platform attribute.

trigger: none

pool:
  vmImage: ubuntu-latest

steps:
- task: Bash@3
  inputs:
    targetType: 'inline'
    script: |
      docker build --platform=linux/arm64 -t bookstore-api:arm64-cc -f src/BookStore.WebApi/Dockerfile .

This time, the process works flawlessly. Now, let’s push it into AWS ECR and in the next section, we’ll try to deploy it on AWS ECS Fargate.

To push it into AWS ECR, let’s keep things straightforward. I’m going to use the Azure DevOps AWSShellScript task. This task executes a shell script using bash with AWS credentials. The script will perform the following steps:

Retrieve an authentication token and authenticate the Docker client with my ECR registry.
Create a new ECR repository.
Tag the container image so I can push it into the repository.
Push the image to my newly created ECR repository.

trigger: none

pool:
  vmImage: ubuntu-latest

steps:
- task: Bash@3
  inputs:
    targetType: 'inline'
    script: |
      docker build --platform=linux/arm64 -t bookstore-api:arm64-cc -f src/BookStore.WebApi/Dockerfile .

- task: AWSShellScript@1
  inputs:
    awsCredentials: 'aws-dev'
    regionName: 'eu-west-1'
    scriptType: 'inline'
    inlineScript: |
      aws ecr get-login-password --region eu-west-1 | docker login --username AWS --password-stdin 156267164149.dkr.ecr.eu-west-1.amazonaws.com
      aws ecr create-repository --repository-name arm64-bookstore-api
      docker tag bookstore-api:arm64-cc 156267164149.dkr.ecr.eu-west-1.amazonaws.com/arm64-bookstore-api:cc
      docker push 156267164149.dkr.ecr.eu-west-1.amazonaws.com/arm64-bookstore-api:cc

Creating the AWS infrastructure

I’m going to need the following resources:

A Virtual Private Cloud (VPC).
An Application Load Balancer (ALB).
An Elastic Container Service (ECS) Cluster.
An ECS Task Definition + An ECS Service.

To create these resources, I’ll be using AWS CDK.

The only aspect worth highlighting here is the creation of an ECS Task Definition that targets an ARM64 processor. This can be achieved simply by setting the CpuArchitecture attribute to ARM64.

The rest of the resources are indifferent to whether you’re deploying an app that targets an ARM64 processor or an AMD one.

private FargateTaskDefinition CreateTaskDefinition()
{
  var repository = Repository.FromRepositoryName(this, "arm64-bookstore-repository", "arm64-bookstore-api");

  var task = new FargateTaskDefinition(this,
      "task-definition-bookstore-api",
      new FargateTaskDefinitionProps
      {
          Cpu = 512,
          Family = "task-definition-bookstore-api",
          MemoryLimitMiB = 1024,
          RuntimePlatform = new RuntimePlatform
          {
              CpuArchitecture = CpuArchitecture.ARM64,
              OperatingSystemFamily = OperatingSystemFamily.LINUX
          }
      });

  task.AddContainer("bookstore-api",
      new ContainerDefinitionOptions
      {
          Cpu = 512,
          MemoryLimitMiB = 1024,
          Image = ContainerImage.FromEcrRepository(repository, "cc"),
          Logging = LogDriver.AwsLogs(new AwsLogDriverProps
          {
              StreamPrefix = "ecs"
          }),
          PortMappings = new IPortMapping[]
          {
              new PortMapping
              {
                  ContainerPort = 8080
              }
          }
      });

  return task;
}

Benchmark

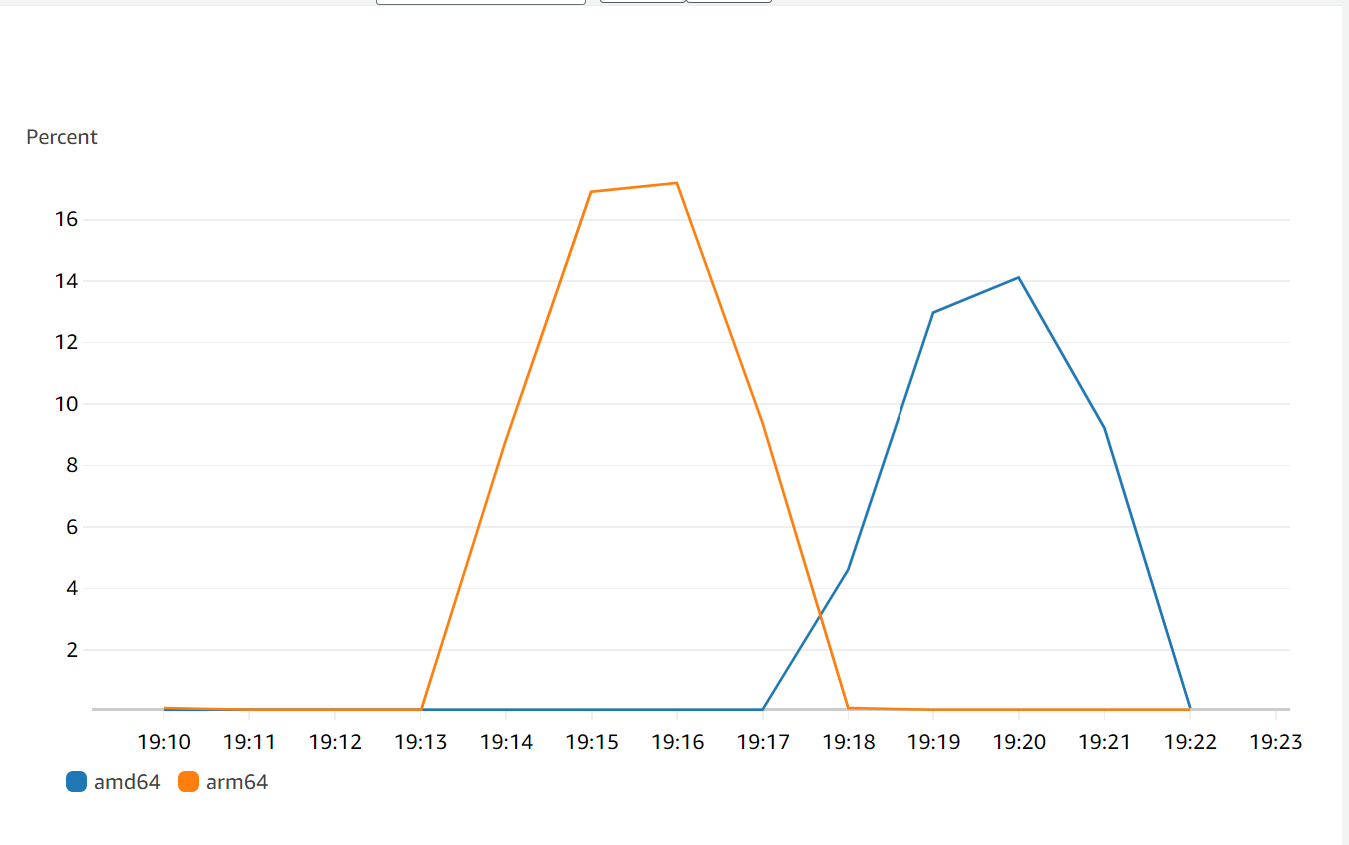

Now, let’s run a little benchmark. I’m going to use Artillery as the load generator.

After deploying the Bookstore API on AWS Fargate, I want to conduct a small benchmark to compare the app’s performance when running on an ARM64 processor versus an AMD64 processor. To do this, I have deployed a second Bookstore API, but this one targets an AMD64 processor.

Now, let’s conduct a small benchmark. I’m going to use Artillery as the load generator.

Test 1:

Duration: 180 seconds.
Rate: 50 req/sec.
Endpoint: GET /api/books

Requests

ARM64 BookStore API

http.codes.200: ................................................................ 9000
http.downloaded_bytes: ......................................................... 45000000
http.request_rate: ............................................................. 50/sec
http.requests: ................................................................. 9000
http.response_time:
  min: ......................................................................... 43
  max: ......................................................................... 1447
  mean: ........................................................................ 61.3
  median: ...................................................................... 56.3
  p95: ......................................................................... 80.6
  p99: ......................................................................... 113.3
http.responses: ................................................................ 9000
vusers.completed: .............................................................. 9000
vusers.created: ................................................................ 9000
vusers.created_by_name.0: ...................................................... 9000
vusers.failed: ................................................................. 0
vusers.session_length:
  min: ......................................................................... 86.3
  max: ......................................................................... 1771.6
  mean: ........................................................................ 125.2
  median: ...................................................................... 113.3
  p95: ......................................................................... 149.9
  p99: ......................................................................... 284.3

AMD64 BookStore API

http.codes.200: ................................................................ 9000
http.downloaded_bytes: ......................................................... 45000000
http.request_rate: ............................................................. 50/sec
http.requests: ................................................................. 9000
http.response_time:
  min: ......................................................................... 44
  max: ......................................................................... 5347
  mean: ........................................................................ 62.8
  median: ...................................................................... 56.3
  p95: ......................................................................... 82.3
  p99: ......................................................................... 111.1
http.responses: ................................................................ 9000
vusers.completed: .............................................................. 9000
vusers.created: ................................................................ 9000
vusers.created_by_name.0: ...................................................... 9000
vusers.failed: ................................................................. 0
vusers.session_length:
  min: ......................................................................... 88.1
  max: ......................................................................... 7209.7
  mean: ........................................................................ 238.6
  median: ...................................................................... 113.3
  p95: ......................................................................... 162.4
  p99: ......................................................................... 5378.9

CPU usage

arm64-test1-cpu-comparison

Memory usage

arm64-test1-mem-comparison

Test 2:

Duration: 60 seconds.
Rate: 100 req/sec.
Endpoint: GET /api/categories

Requests

ARM64 BookStore API

http.codes.200: ................................................................ 6000
http.downloaded_bytes: ......................................................... 990000
http.request_rate: ............................................................. 100/sec
http.requests: ................................................................. 6000
http.response_time:
  min: ......................................................................... 43
  max: ......................................................................... 540
  mean: ........................................................................ 63.2
  median: ...................................................................... 58.6
  p95: ......................................................................... 96.6
  p99: ......................................................................... 117.9
http.responses: ................................................................ 6000
vusers.completed: .............................................................. 6000
vusers.created: ................................................................ 6000
vusers.created_by_name.0: ...................................................... 6000
vusers.failed: ................................................................. 0
vusers.session_length:
  min: ......................................................................... 87.8
  max: ......................................................................... 1343.7
  mean: ........................................................................ 127.6
  median: ...................................................................... 117.9
  p95: ......................................................................... 172.5
  p99: ......................................................................... 219.2

AMD64 BookStore API

http.codes.200: ................................................................ 6000
http.downloaded_bytes: ......................................................... 990000
http.request_rate: ............................................................. 100/sec
http.requests: ................................................................. 6000
http.response_time:
  min: ......................................................................... 44
  max: ......................................................................... 168
  mean: ........................................................................ 62
  median: ...................................................................... 58.6
  p95: ......................................................................... 87.4
  p99: ......................................................................... 113.3
http.responses: ................................................................ 6000
vusers.completed: .............................................................. 6000
vusers.created: ................................................................ 6000
vusers.created_by_name.0: ...................................................... 6000
vusers.failed: ................................................................. 0
vusers.session_length:
  min: ......................................................................... 87.7
  max: ......................................................................... 279.4
  mean: ........................................................................ 122.4
  median: ...................................................................... 115.6
  p95: ......................................................................... 165.7
  p99: ......................................................................... 194.4

CPU usage

arm64-test2-cpu-comparison

Memory usage

arm64-test2-mem-comparison

Test 3:

Duration: 120 seconds.
Rate: 80 req/sec.
Endpoint: GET /api/orders

Requests

ARM64 BookStore API

http.codes.200: ................................................................ 9600
http.downloaded_bytes: ......................................................... 18124800
http.request_rate: ............................................................. 80/sec
http.requests: ................................................................. 9600
http.response_time:
  min: ......................................................................... 44
  max: ......................................................................... 159
  mean: ........................................................................ 64
  median: ...................................................................... 61
  p95: ......................................................................... 87.4
  p99: ......................................................................... 108.9
http.responses: ................................................................ 9600
vusers.completed: .............................................................. 9600
vusers.created: ................................................................ 9600
vusers.created_by_name.0: ...................................................... 9600
vusers.failed: ................................................................. 0
vusers.session_length:
  min: ......................................................................... 87.6
  max: ......................................................................... 233.1
  mean: ........................................................................ 123.5
  median: ...................................................................... 122.7
  p95: ......................................................................... 153
  p99: ......................................................................... 186.8

AMD64 BookStore API

http.codes.200: ................................................................ 9600
http.downloaded_bytes: ......................................................... 18124800
http.request_rate: ............................................................. 80/sec
http.requests: ................................................................. 9600
http.response_time:
  min: ......................................................................... 44
  max: ......................................................................... 304
  mean: ........................................................................ 63.9
  median: ...................................................................... 61
  p95: ......................................................................... 87.4
  p99: ......................................................................... 104.6
http.responses: ................................................................ 9600
vusers.completed: .............................................................. 9600
vusers.created: ................................................................ 9600
vusers.created_by_name.0: ...................................................... 9600
vusers.failed: ................................................................. 0
vusers.session_length:
  min: ......................................................................... 88.3
  max: ......................................................................... 409.9
  mean: ........................................................................ 124.8
  median: ...................................................................... 122.7
  p95: ......................................................................... 153
  p99: ......................................................................... 183.1

CPU usage

arm64-test3-cpu-comparison

Memory usage

arm64-test3-mem-comparison

If you analyze the results of the above tests, you’ll find that the differences between running the Bookstore API on an ARM64 or an AMD64 processor are practically indistinguishable.

To be fair, the Bookstore API is probably not the best choice for comparing how a .NET 8 app runs on Fargate when targeting an ARM64 processor versus an AMD64 processor.

I have written another .NET 8 API. This one implements a version of the Sieve of Eratosthenes algorithm to find all prime numbers up to a given number. This API is more CPU-intensive. The following code snippet will show exactly what the API does.

using Microsoft.AspNetCore.Mvc;
using System.Collections;

namespace Arm64Testing.WebApi.Controllers
{
    [ApiController]
    [Route("[controller]")]
    public class PrimeController : ControllerBase
    {

        [HttpGet]
        public int Get()
        {
            var n = 10000000;
            return CountPrimes(n);
        }

        public static int CountPrimes(int n)
        {
            int segmentSize = 10000;
            bool[] isPrime = new bool[segmentSize];

            int count = 0;
            for (int low = 2; low <= n; low += segmentSize)
            {
                int high = Math.Min(low + segmentSize - 1, n);
                for (int i = 0; i < segmentSize; i++)
                {
                    isPrime[i] = true;
                }

                int sqrtHigh = (int)Math.Sqrt(high);
                for (int p = 2; p <= sqrtHigh; p++)
                {
                    if (IsPrime(p))
                    {
                        int start = Math.Max(p * p,
                            (low + p - 1) / p * p);
                        for (int j = start; j <= high; j += p)
                        {
                            isPrime[j - low] = false;
                        }
                    }
                }

                for (int i = Math.Max(2, low); i <= high; i++)
                {
                    if (isPrime[i - low])
                    {
                        count++;
                    }
                }
            }

            return count;
        }

        public static bool IsPrime(int num)
        {
            if (num < 2)
                return false;

            for (int i = 2; i * i <= num; i++)
            {
                if (num % i == 0)
                    return false;
            }

            return true;
        }
    }
}

Let’s run a test with Artillery for 240 seconds at a rate of 3 requests per second (if we increase the rate, most of the requests will likely time out due to the significant amount of time required to calculate the results).

Requests

ARM64 BookStore API

http.codes.200: ................................................................ 720
http.downloaded_bytes: ......................................................... 4320
http.request_rate: ............................................................. 3/sec
http.requests: ................................................................. 720
http.response_time:
  min: ......................................................................... 182
  max: ......................................................................... 622
  mean: ........................................................................ 405.5
  median: ...................................................................... 441.5
  p95: ......................................................................... 528.6
  p99: ......................................................................... 561.2
http.responses: ................................................................ 720
vusers.completed: .............................................................. 720
vusers.created: ................................................................ 720
vusers.created_by_name.0: ...................................................... 720
vusers.failed: ................................................................. 0
vusers.session_length:
  min: ......................................................................... 229.6
  max: ......................................................................... 682.8
  mean: ........................................................................ 467.7
  median: ...................................................................... 507.8
  p95: ......................................................................... 584.2
  p99: ......................................................................... 632.8

AMD64 BookStore API

http.codes.200: ................................................................ 720
http.downloaded_bytes: ......................................................... 4320
http.request_rate: ............................................................. 2/sec
http.requests: ................................................................. 720
http.response_time:
  min: ......................................................................... 193
  max: ......................................................................... 1355
  mean: ........................................................................ 573.5
  median: ...................................................................... 596
  p95: ......................................................................... 820.7
  p99: ......................................................................... 944
http.responses: ................................................................ 720
vusers.completed: .............................................................. 720
vusers.created: ................................................................ 720
vusers.created_by_name.0: ...................................................... 720
vusers.failed: ................................................................. 0
vusers.session_length:
  min: ......................................................................... 245.4
  max: ......................................................................... 2172.2
  mean: ........................................................................ 641.4
  median: ...................................................................... 658.6
  p95: ......................................................................... 907
  p99: ......................................................................... 1107.9

CPU usage

arm64-prime-test-cpu-comparison

In this case, the ARM64 version performs significantly better.

The average response time is faster (467.7 vs 573.5).
The CPU usage is lower.

Conclusion

After running these series of tests, it appears that choosing ARM64 is the better option. In most of the tests, it performs on par with an AMD64 processor, and in a more CPU-intensive test, it performs even better.

Moreover, if we consider the pricing listed on the AWS website, we see the following:

AWS Fargate price when using a Linux AMD64 processor

per vCPU per hour: $0.04048
per GB per hour: $0.004445

AWS Fargate price when using a Linux ARM64 processor

per vCPU per hour: $0.03238
per GB per hour: $0.00356

Using an ARM64 processor for hosting your .NET 8 APIs seems to be the way to go. It not only performs the same, if not better, but it is also cheaper.

When building your container images, avoid emulation and stick with Cross Compilation. This way, you can build the images wherever you want, whether it’s on any of your local machines, a GitHub Action Runner, an Azure DevOps hosted Agent.
The only issue you might encounter is if you try to build for more than one architecture at the same time (using something like --platform=linux/amd64,linux/arm64).

Building and deploying a .NET 8 App on an ARM64 processor using Azure Pipelines and AWS ECS Fargate. Part 2: Demo

Application

Constructing the Dockerfile

Using emulation

Using Cross-Compilation

Constructing the container image using Azure Pipelines (and pushing it into ECR)

Using emulation

Using cross-compilation

Creating the AWS infrastructure

Benchmark

Test 1:

Requests

CPU usage

Memory usage

Test 2:

Requests

CPU usage

Memory usage

Test 3:

Requests

CPU usage

Memory usage

Requests

CPU usage

Conclusion
